Features
• Slip cover for head area attached with Velcro
• Integrated lumbar support
• Easy grip forward extending arm caps
• Stationary base with adjustable leveling glides, non-marking nylon

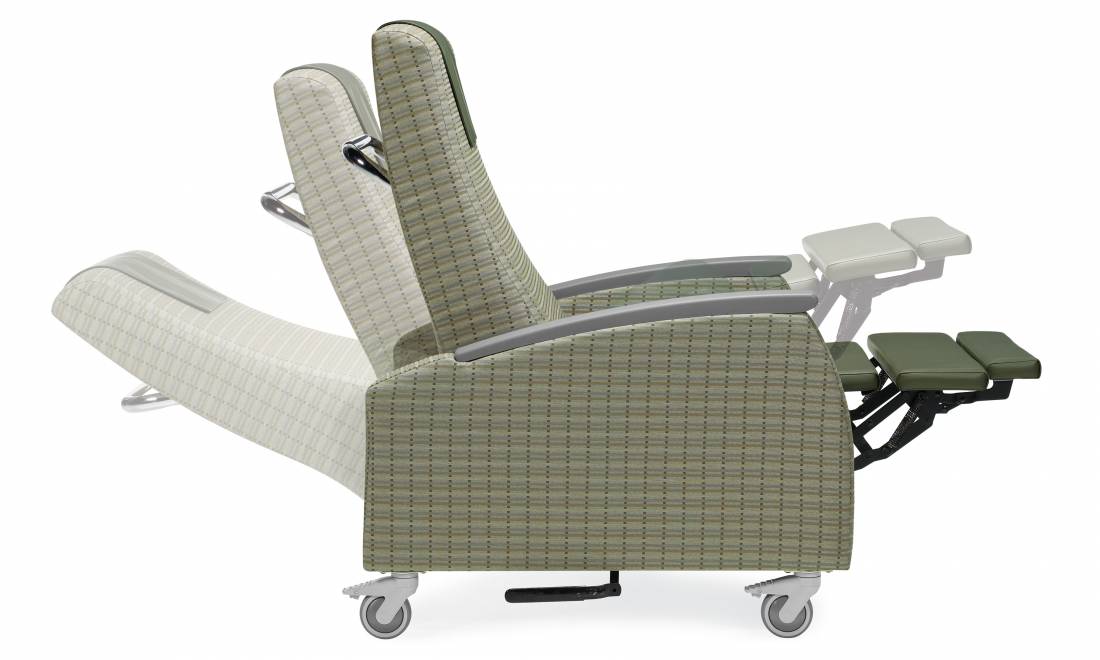

• Opens easily with recline release handle & body motion
• Back recline to 60º angle maximum (from vertical)
• Allow 9 in (229 mm) wall clearance for full recline

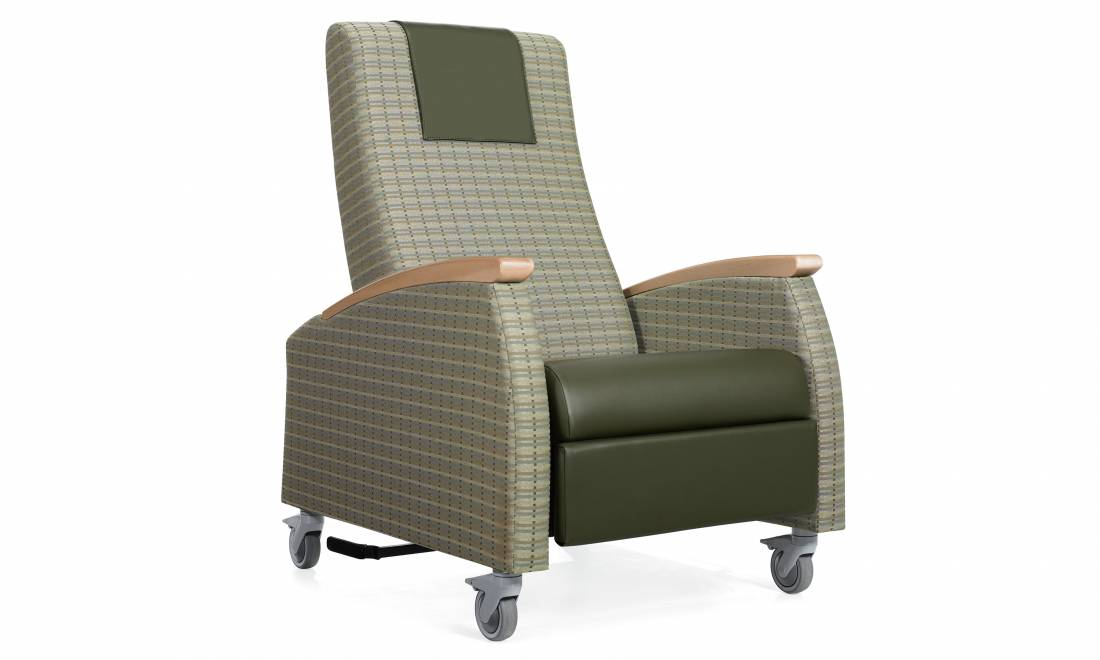

• Mobile recliners with four locking casters for easy relocation of chair
• Back reclines to 55º angle maximum (from vertical).
With optional Trendelenburg position, back reclines to 72º angle maximum (from vertical)
• Chair requires 19 in (483 mm) clearance to fully recline.
With optional Trendelenburg position, chair requires 24 in (610 mm) clearance
Options
• Wood armcaps are available in any standard healthcare wood finish
• Armcaps can be replaced with Self Skinned Urethane (SSU); available in six colors
• Chrome push bar with polished finish on chair back is standard with mobile base
• Seam sealing option is available
• Mobile base models are available with four institutional quality locking casters
• Trendelenburg mechanism can be specified at time of order
• Tablet arm is available on left or right side. It can
rotate to be positioned for any user activity and can be folded down when not in use
• IV pole available
• Oxygen tank holder available
• Footrest is also available in Grey thermally fused laminate with Black edge
COM Yardage
Yardage is based on unmatched materials with widths of 54 inches for seating
• Full Unit: 6.5 yards
• Seat/Inside Back: 1.5 yards
• Outside Back: 2.5 yards
• Arms: 2.75 yards
• Seat: 0.75 yards
Infection Control
• Side clean out on seat
• No Velcro on seat
• Seam sealing option
• Zipper sealing option
• Optional SSU armcaps are cleanable and non-porous
• For proper cleaning and disinfecting practices, the textile selection needs to be identified. It is vital that following any chemical application a clear water wipe down occur to avoid chemical build up that will lead to deterioration of the textile. Contact Global should information on using a specific disinfectant be required
On Site Repair and Replacement
• All components are field replaceable including seat, back and armrests
• Removable covers on back, seat, leg and foot support
• The frame offers common hardware and mounting locations for the legs and casters allowing on-site conversion
Construction (Overall Frame)
• All connections are metal-to-metal. Primary seat arm connection uses patent pending die-cast zinc connectors
• Chair frame utilizes box joinery
Construction (Armcaps)
• Solid hardwood armcaps
• Armcaps are molded around a formed steel insert ensuring a metal-to-metal connection
• All armcaps are field replaceable
Construction (Seat Deck)
• Painted steel seat frame
• Heavy gauge no-sag springs
• Synthetic woven webbing under cushion
Construction (Back)
• 1 in (25 mm) plywood frame construction
• Heavy gauge no-sag spring
• Synthetic woven webbing under cushion
Construction (Glides or Casters)
• Non-marking nylon glides on adjustable levelers
• 4 in (102 mm) diameter non-marring medical casters
• Manual locking casters
• Two swiveling casters on front legs. Two non-swiveling casters on rear legs
Upholstery
• Seat cushion, back cushion and covers are removable/replaceable
• Front edge of seat is a seamless waterfall
Foam
• 3 in (76 mm) Ultracell foam in seat and back cushions
• Meets all ASTM standards for comfort and durability
Weight Capacity
Designed for an active weight capacity of 300 lb.
Warranty
Lifetime warranty on all components except the following:
• 5 year warranty on foam and textiles
• 12 year warranty on control mechanisms
• Warranty applies only to single shift, standard commercial usage (8 hours/day, 5 days/week)
Fire Rating
All textiles and foam are tested and certified, meeting California Technical Bulletin 117 (CAL TB 117-2013) standards.
Environmental
View Environmental Data Sheets online.
All foam is produced without using any ozone depleting chloro-flouro chemicals.
Awards/Certifications
• Meets or exceeds all applicable BIFMA standards for safety and durability
• Manufactured in ISO 9001 and 14001 certified facilities
