Global Prime™ Healthcare Lockers | Hygienic & Durable Staff Storage | Lifetime Warranty

CONSTRUCTION SPECIFICATIONS

• Steel case construction of top and bottom, back and sides are 20 gauge flanged steel.
• Welded case is reinforced with 20 gauge steel horizontal and vertical channels to ensure strength.
• Weld nuts at the base for attachment of adjustable glides.
• Steel doors are constructed of 22 gauge flanged steel and reinforced with 22 gauge steel vertical braces.
• Full overlay hinged doors with 110° opening angle.

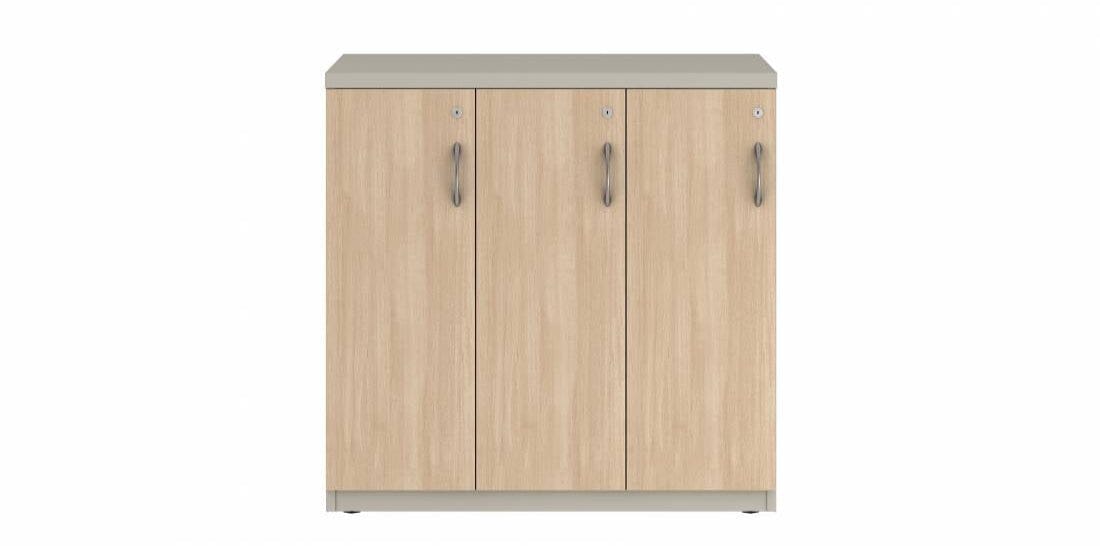

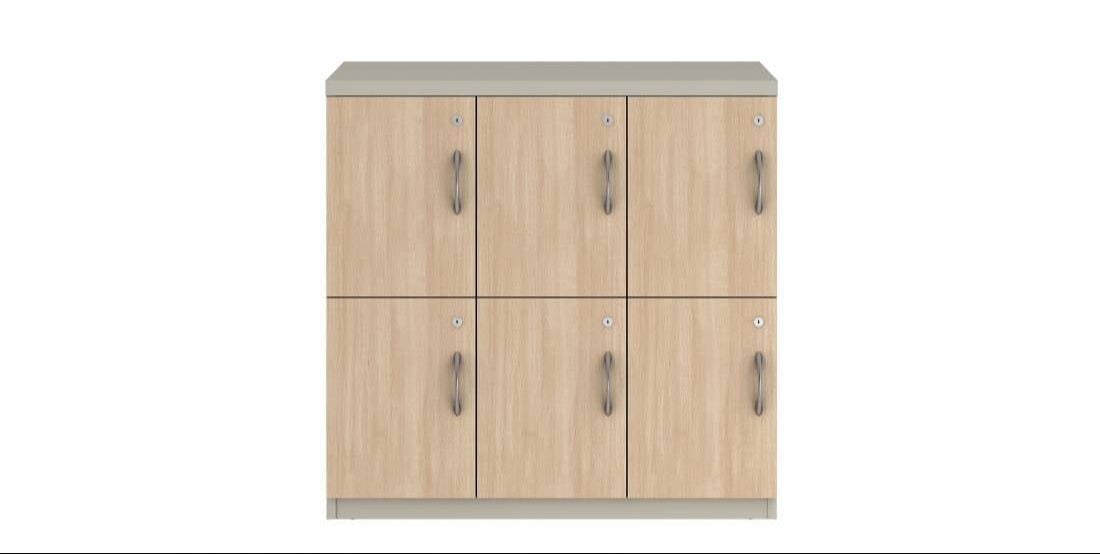

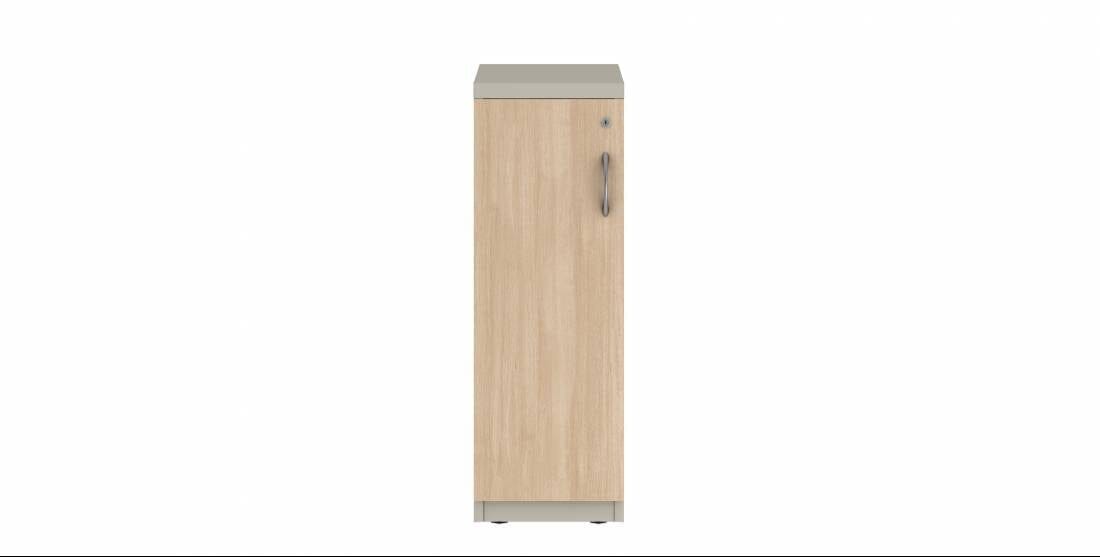

• Laminate doors are thermally fused laminate with1mm matching edgeband around perimeter.
• Double and triple column lockers have vertical dividers constructed of double wall 20 gauge steel fastened to the base and top.
• Meets applicable ANSI/BIFMA standards for optimum durability and performance.


Note: All 12", 15" or 18" wide lockers must be ganged to another locker or anchored to a fixed wall or adjacent cabinet for compliance with applicable ANSI/
BIFMA X5.6 storage standards. Ganging instructions are available separately.

FINISH OPTIONS

• Specify finish for case and doors separately.
• Steel case and doors are finished in an environmentally friendly electrostatically applied powder coat solution - a superior durable and lasting finish.
• Specify laminate finish for laminate fronts.
• Specify handle for models ending in M (flat front metal) or L (laminate front)


Painted steel case and door finish options:

• BLK Black
  BNE Bone
  BGR Business Grey
  CHR Charcoal
  CLT Claret
  DPT Desert Putty
  DWT Designer White
  FOG Fog
  GRY Grey
  ICE Ice
  IVR Ivory
  LGR Light Grey
  MET Metro
  MOS Moss
  NVY Navy
  NEV Nevada
  OYS Oyster
  SKY Sky
  SIL Silver
  STN Stone
  SGR Storm Grey
  TSA Tahiti Sand
  TPE Taupe
  TUN Tungsten (add 10% upcharge)
  WIL Willow
  BKC Black Coffee Textured
  BZD Blizzard Textured
  DCH Dark Chocolate Textured
  MCH Mocha Textured
  SDT Stonedust Textured

• Thermally fused laminate door front finish options:
  ACJ Absolute Acajou
  ASN Asian Night
  AWC Avant Cherry
  AWH Avant Honey
  BLK Black
  BZD Blizzard
  BRC Brushed Cobalt
  CMB Clear Maple
  CGY Custom Grey
  DES Dark Espresso
  DWT Designer White
  FAS Fashionista
  FCL First Class
  NBL Noce Biondo
  NGL Noce Grigio
  NEL Noce Leggero
  NML Noce Medio
  QTM Quartered Mahogany
  SBY Sheer Beauty
  SDT Stondust
  SOG Storm Grey
  WHE Walnut Heights
  WHC White Chocolate
  WCR Winter Cherry


PULLS

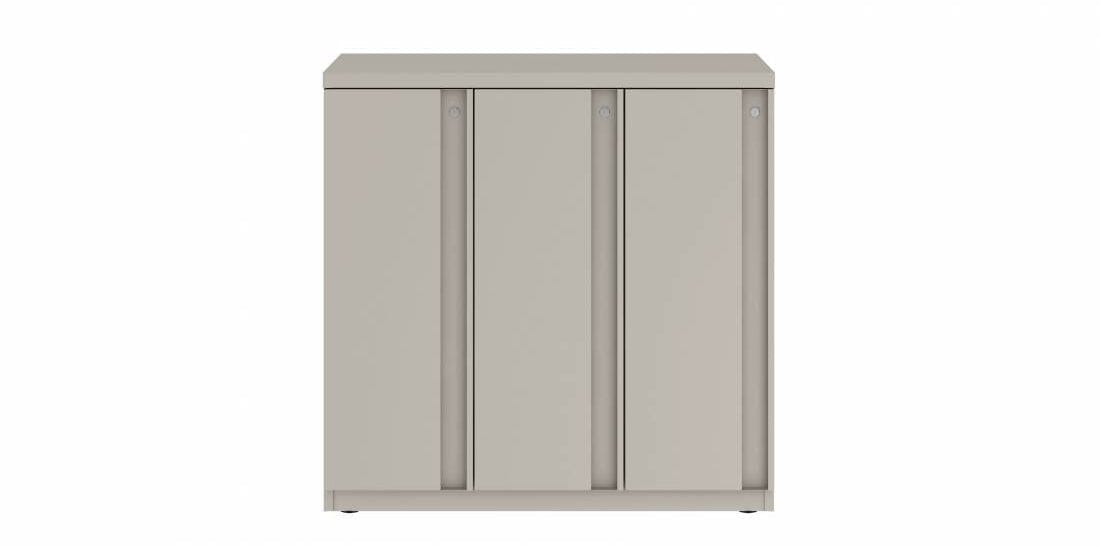

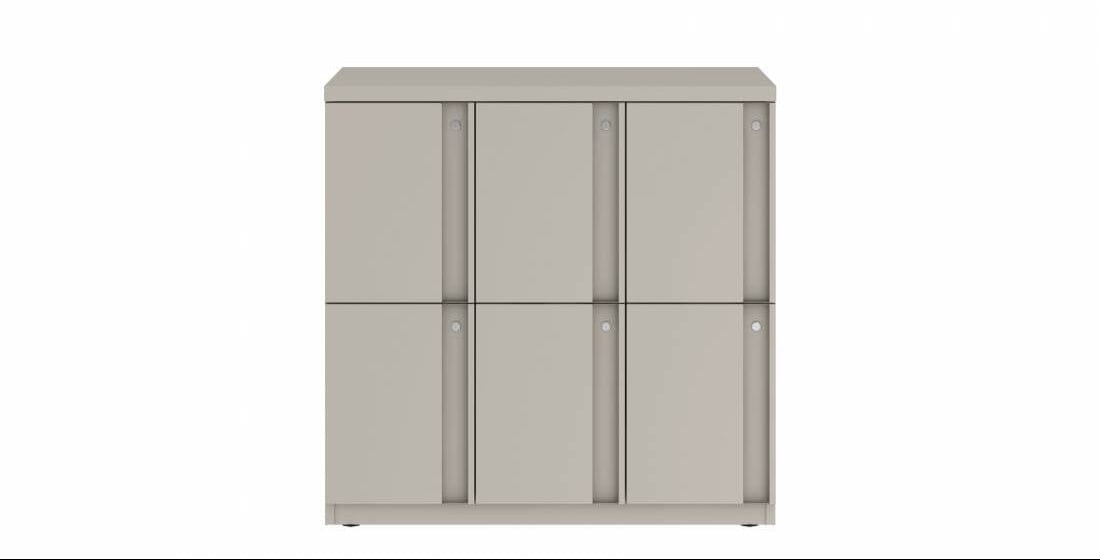

For models ending in P (full pull)

• No handle option (default)
• Hasp lock for user supplied padlock is not optional
• Digital keyless entry, keypad style lock is not optional

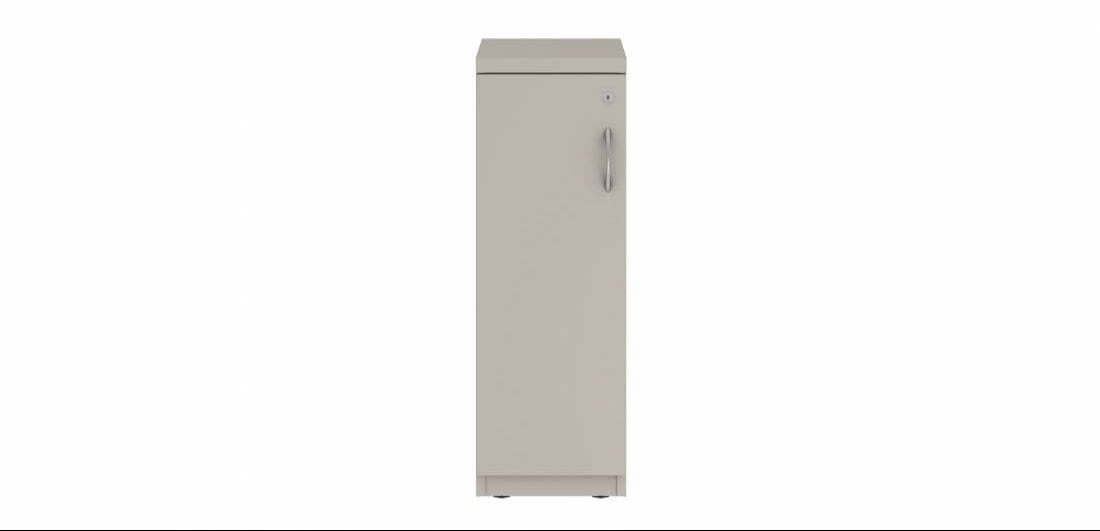

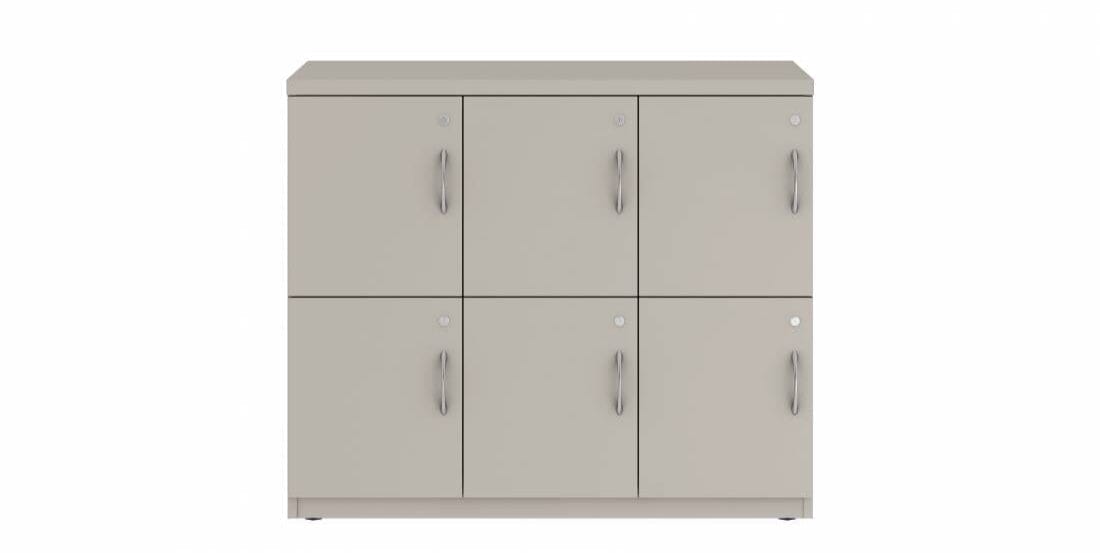

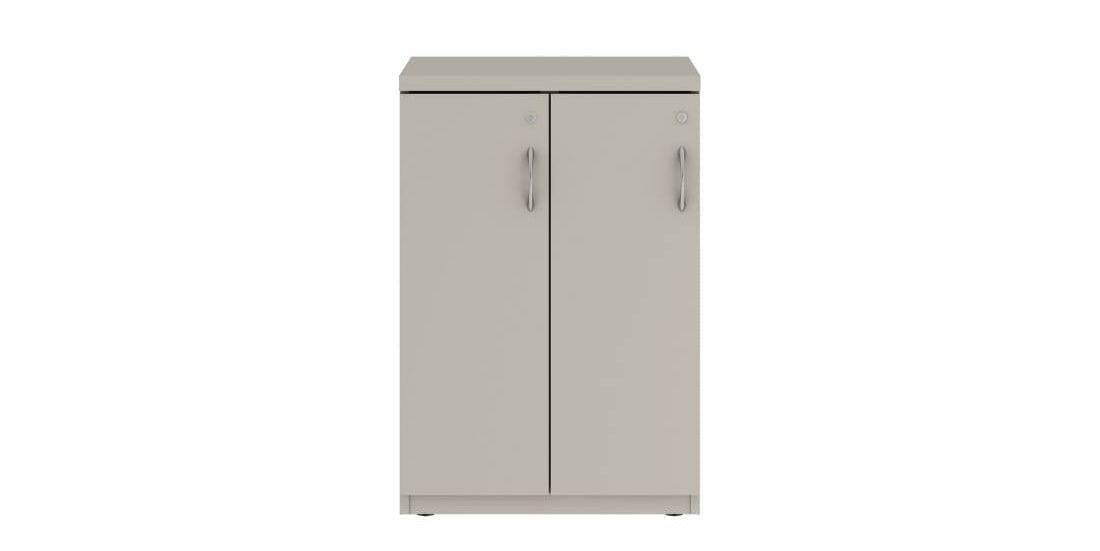

• For models ending in M (flat front metal) or L(laminate front)

R - Bar handle, Black
Q - Bar handle, Silver
G - Bridges BRH1B, Black
B - Bridges BRH1, anodized aluminum
P - Bridges BRH2, anodized aluminum
O - Crescent handle, Black
Z - Dimpled handle, Nickle
X - Flared handle, Black
W - Flared handle, Brass
S - Flared handle, Silver
U - Square edge handle, Black
V - Square edge handle, Silver
L - Hasp lock, no handle

K - Digital lock (includes handle) keypad entry with "assigned" (KDA) or "shared" (KDS) mode.

Handle Options

• V square edge Silver
• Q bar Silver
• S flared Silver
• U square edge matte Black
• R bar Black
• W flared Brass
• O crescent Black
• Z dimpled matte Nickel
• X flared matte Black
• G Bridges BRH1B, Black
• B Bridges BRH1 - anodized aluminum
• P Bridges BRH2 - anodized aluminum

Note: Unless noted otherwise, handles are from the Zira desking series.

LOCK
The following options are available for units with full pull or when applied pull is selected:

• NLK - No lock
  KRM - Key random
  KLP - Key list provided, cores shipped separately


Notes:

• When K pull option is specified for digital lock, select lock option:
  KDA for assigned mode
  KDS for shared mode
  Lock position is the same as for cam lock (see page 31), hardware mounted horizontally.
  Be sure to specify Digilock program and manager keys separately (one program key
  and at least one manager key is required per install). Refer to page 50.
• For models ending in P (full pull), lock position is the same as for cam lock (see page 31)
  but within the full pull fold.
• For hasp lock (L) option, same position as Digilock option.

VENTILATION

• Applicable only for lockers with metal doors (models ending in P and M), at no upcharge. Ventilation options are not available for products with laminate fronts.
  N - None
  U - Upper position on door front
  L - Lower position on door front
  B - Both upper and lower positions on door front

GANGING
• All 12", 15" and 18" wide lockers must be ganged to another locker or anchored to a fixed wall or adjacent cabinet to be compliant with applicable ANSI/BIFMA X5.6 storage standards. Use #8 or # 10 self-tapping screws to join units through the frame holes at the frame location where there is a double wall to ensure the screw tips are protected inside the frame. Self-tapping screws are to be provided by the installation
company. Ganging instructions with imagery available online.
