SPEC Traffic Dining Heavy-Duty Table & Chair Set – 500lb Capacity & Customizable
SPEC Traffic Dining Heavy-Duty Table & Chair Set – 500lb Capacity & Customizable
Click to open expanded view

SPEC Traffic Dining Heavy-Duty Table & Chair Set – 500lb Capacity & Customizable

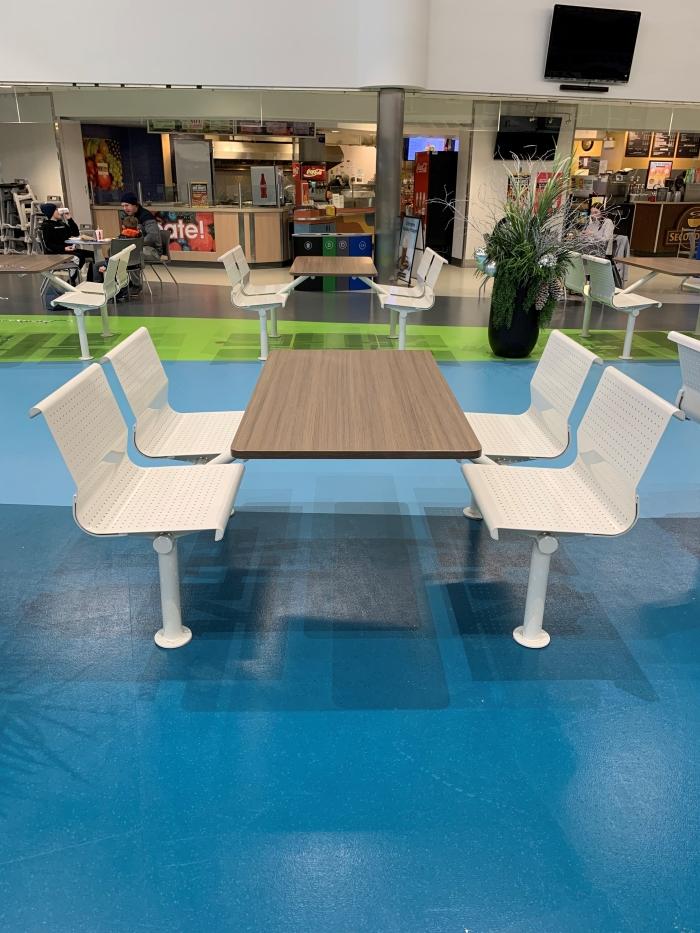

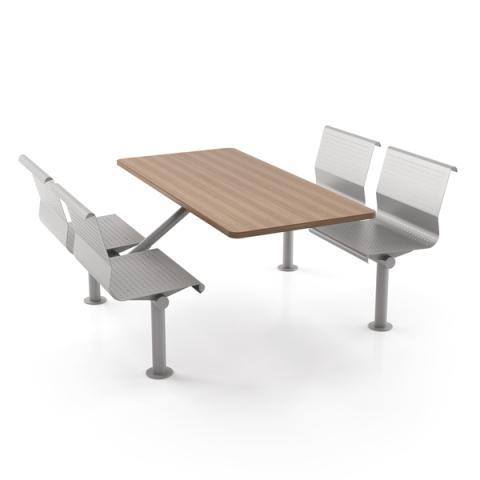

Enhance your commercial, healthcare, or institutional space with the SPEC Traffic Dining heavy-duty fixed table and chair combination—engineered for maximum durability, safety, and style. This ANSI/BIFMA X5.4 & X5.5 certified set features a seam-welded tubular steel frame with a 500 lb weight capacity, making it perfect for hospitals, clinics, cafeterias, waiting areas, and public lounges.

Key Features of the SPEC Traffic Dining Set:

✔ Industrial-Strength Construction – Built with 11-gauge perforated steel seats, 3/16" thick steel uprights, and a 4" reinforced base for superior stability.

✔ Bariatric & Standard Seating Options – Choose between a 22" standard seat or a 30" bariatric seat width for enhanced comfort and accessibility.

✔ Customizable Design – Personalize your set with 76 Spectone colors for the base and 38 Spectone Bio Edge options to complement any interior.

✔ Safety & Compliance – Includes tamper-proof fasteners, fire-resistant materials, and floor-mounting plates for secure, long-lasting installation.

✔ Durable Tabletop Choices – Available in coated steel or laminate with PVC edges, sized at 30" x 48" for optimal workspace functionality.

Why Choose the SPEC Traffic Dining Collection?

  • Welded steel end caps and metal-to-metal seat brackets ensure decades of reliable use.
  • Optional upholstered cushions for added comfort in high-traffic environments.
  • Low-maintenance, scratch-resistant finishes designed for easy cleaning and longevity.

Ideal for medical facilities, airports, corporate cafeterias, schools, and public venues, the SPEC Traffic Dining series delivers unmatched strength, versatility, and modern aesthetics. Order now and customize your set to fit your space perfectly!

Specifications

FRAME

The main beam is constructed of 2-1/2" O.D. 11
gauge seam-welded tubular steel. “H” style tapered uprights (3” to 2 1/2”) are constructed of 3/16" steel, notched to nest to the beam, welded in place, then ground and polished to a smooth surface finish. The  foot is a 4” wide, 3/16” thick welded steel assembly mechanically fastened to the “H” section upright with nylon hex nuts and plated ¼-20 carriage bolts.

SEAT AND BACK CONSTRUCTION

SEAT & BACK PERFORATED Perforated steel seat is
constructed of 11 gauge formed steel punched to a 1” centered pattern.
Connections are welded in place and the seat bracket is metal to metal.

CERTIFICATIONS

ANSI/BIFMA X5.4 Public & Lounge Seating ANSI/BIFMA X5.5
Desk/Table Products

OPTIONS

Tabletop is available in coated steel.

Bariatric seating sizing available.

STATEMENT OF LINE - SPECIFICATIONS

7100NHD

  • 2mm Bio Edge available in 38 Spectone colors
  • Bases are available in 76 Spectone colors
  • Perforated steel seat standard in 22" seat width
  • Comes with floor-mounting plates
  • Heavy duty Welded steel end caps
  • Tamper-proof fasteners are standard
  • Seats and columns can be finished in different colors
  • Upholstered cushions for seat and back also available
  • Tabletop standard in laminate with PVC or self edge
  • Tabletop available in coated steel
  • Fire barrier
  • Perforated steel seat also available in a 30" bariatric seat width for increased space between patients

 Product Dimensions

  • Depth: 74
  • Seat Height: 18
  • Total Height: 33/75
  • Total Width: 48
