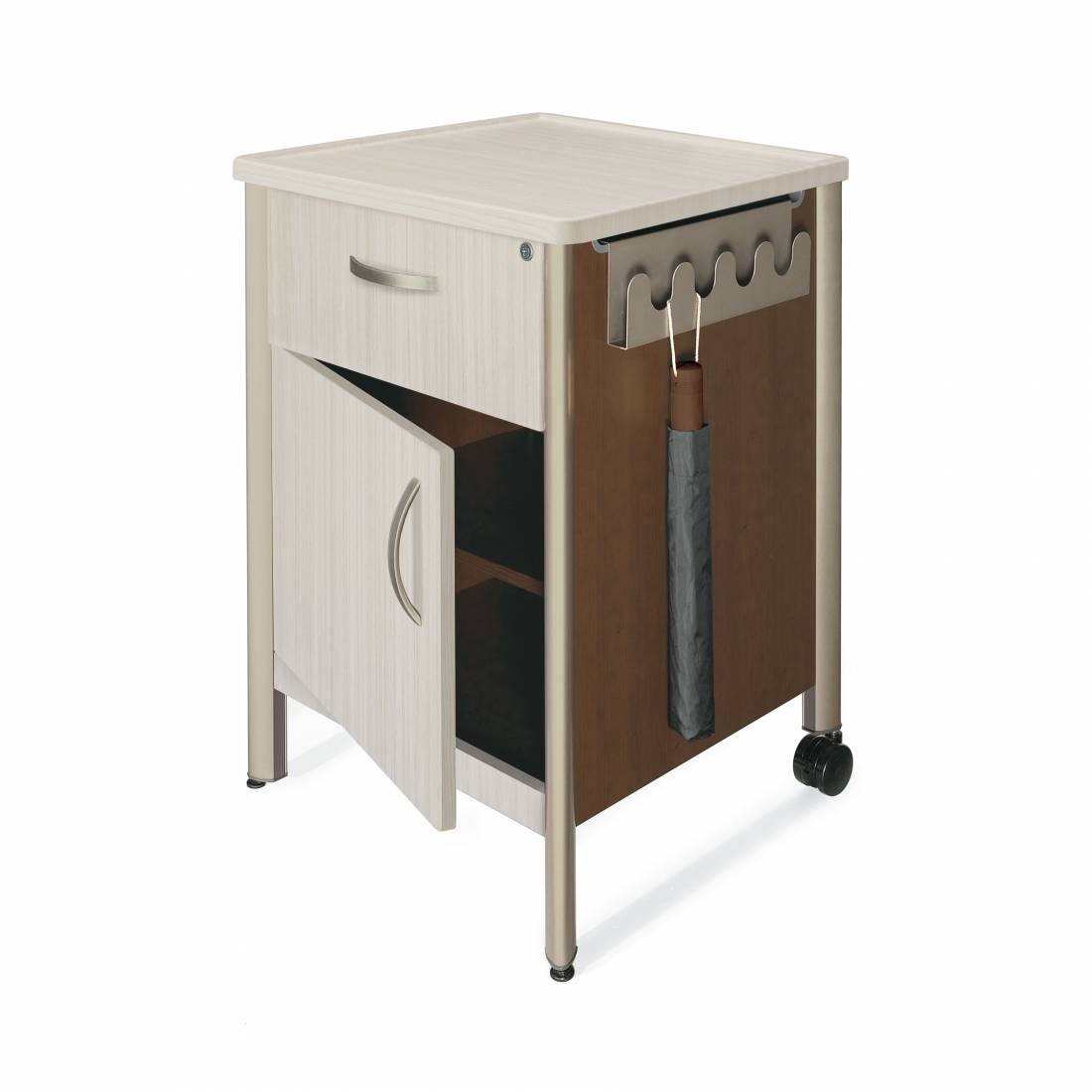

Global Sonoma Bedside Cabinets – Modular, Space-Saving & Healthcare-Ready

TOPS

• Units of 37.5" or lower are constructed with 1" high pressure laminate with coordinating 3mm polymer edge.

• Units above 37.5" in height are constructed with 1" thermally fused laminate with coordinating 3mm polymer edge.

• Thermofoil and solid surface finishes are available on bedside cabinets only.

CHASSIS

• Constructed from 0.75" thermally fused laminate.

• Connected using aluminum extrusions allowing for a continuous connection top-to-bottom.

• Return on investment is enhanced through the ability to replace chassis panels or tops should they become damaged.

BACK

• Back panels are constructed from 0.75" thermally fused laminate.

DRAWERS

• Drawer fronts are constructed of 0.75" thermally fused laminate with 3mm PVC edge.

• Thermofoil finishes are available on bedside cabinets only.

• Mounted on high quality precision steel full extension ball bearing slides.

• Drawer depth is determined by the individual product size:

20" deep cabinets feature 15.5" drawers.

22" and 26" deep products feature 17.25" drawers.

• Bottom drawer interior is fully wrapped in a White colored durable vinyl covering, This vinyl wrap offers superior durability and performance in demanding environments.

• Soft close drawer is optional, specify (SF) at time of order.

DRAWER INSERTS

• The optional bedside cabinet drawer liner insert and personal organizer tray sets are constructed of high impact styrene plastic in a neutral color (French Vanilla).

• High impact styrene plastic liners have been specially designed to saddle the drawer edges for a perfect fit while eliminating gaps and potential traps.

• High impact styrene plastic insert liner and organizer tray set can be removed for ease of room transfer and cleaning.

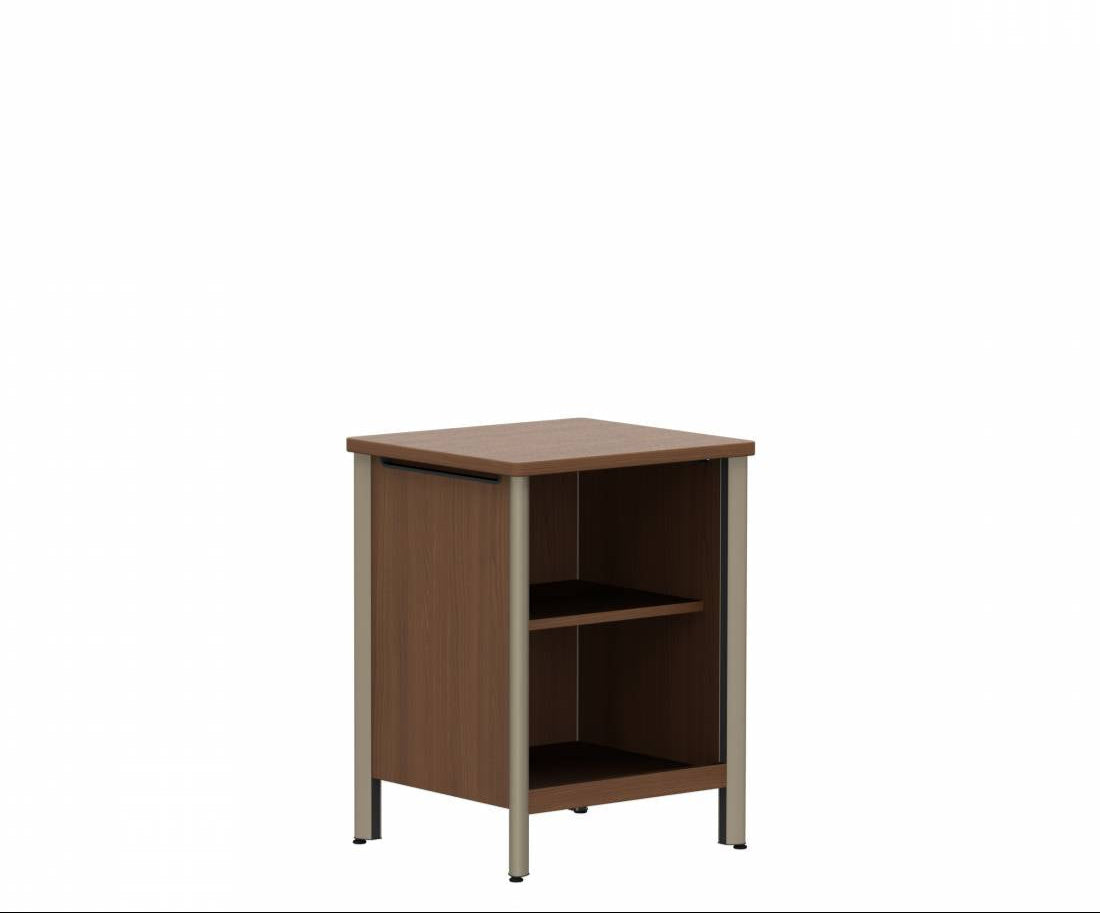

SHELVING

• Structural fixed shelves are constructed of 1" thermally fused laminate with coordinating self edge.

• Adjustable shelves are constructed of 0.75" thermally fused laminate with coordinating self edge.

• Shelf pins are offered for securing shelf with self-drilling screws to prevent accidental movement.

DOORS

• Constructed of 0.75" thermally fused laminate with 3mm PVC edge.

• Mounted utilizing commercial quality hinges that provide a 170˚ opening span for easy access to personal belongings.

SPILL COLLECTOR

• Spill collector (SC) is optional on the edge of bedside cabinets with Thermofoil finish only.

LOCKS

• A lock is optional on the top drawer position of all units with drawers. Must be specified at time of order.

• Random keying will be provided as standard when locks are ordered.

• For key alike numbering sequence, please specify keys number 401-440.

• For specifying lock on top drawer, indicate (LS) (lock set) after model number.

ALUMINUM EXTRUSIONS/LEGS/PLASTIC PARTS

• Aluminum extrusions form the structural integrity of the product, ensuring a continuous solid connection for the unit chassis as well as providing leg support.

• The aluminum extrusion connection/leg is extended to allow clearance under each unit for access during cleaning.

• The aluminum extrusion connection/leg is standard with Charcoal color plastic glide and a non-marking leveler.

• Levelers offer 0.5" adjustment for increased stability and leveling.

• Standard powder coated paint finishes are Black(BLK), Blizzard(BZD), Charcoal(CHR),
Kalua(TKA), Latte(TLA), Mocha(TMO), Nevada(NEV), Sierra(SCA), Silver(SIL), Taupe(TPE) and Toast(TOA).

• Tungsten (TUN) finish is available at a 10% upcharge.

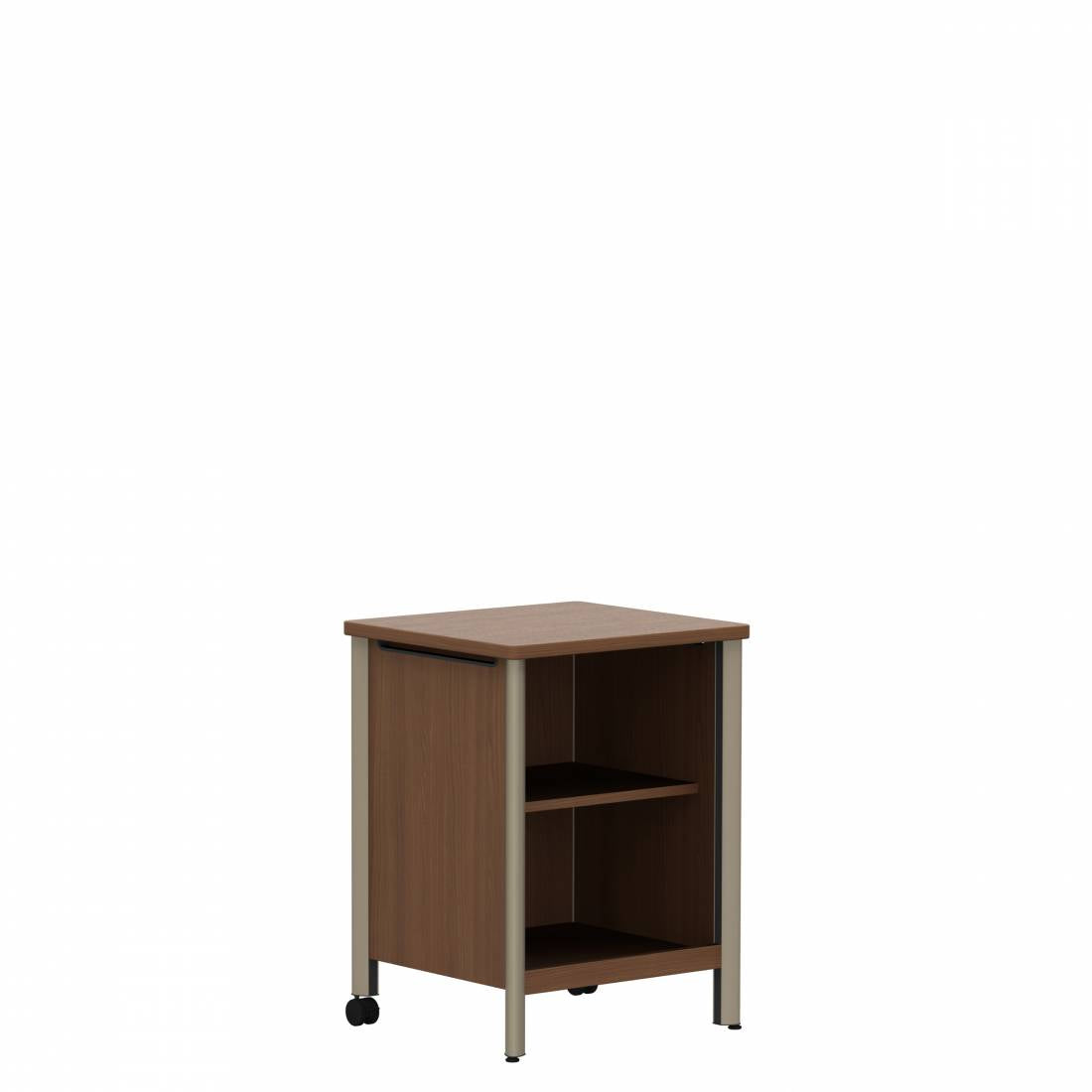

CASTERS

• Available only on specific units.

• Products allowing use of casters are identified by the product code followed by a (C).

• Casters must be specified at time of order.

• Casters cannot be retrofitted in the field.

• Casters are commercial quality, swivel dual wheel manual locking.

• When ordering two locking casters the casters will be in the front of the unit for ease of access, non-locking casters will be in the back.

HANDLES

• Handles require a 128mm center point if custom styles are desired.

• A1 Arc handle is standard

ACCESSORIES

• A complementary line of accessories is available to complete and enhance any room or setting.

• Bookcases offer the same superior construction utilizing aluminum extrusions on each corner and are available in several heights.
