Global Primacare Guest Series – Heavy-Duty Steel Healthcare Seating for High-Traffic Areas

Global Primacare Guest Seating Specifications

Features

• Wall saver leg design prevents chair back from contact with wall

• Integrated lumbar support

• Standard Self Skinned Urethane (SSU) armcaps

• Complementing tables are available

• Shipped fully assembled

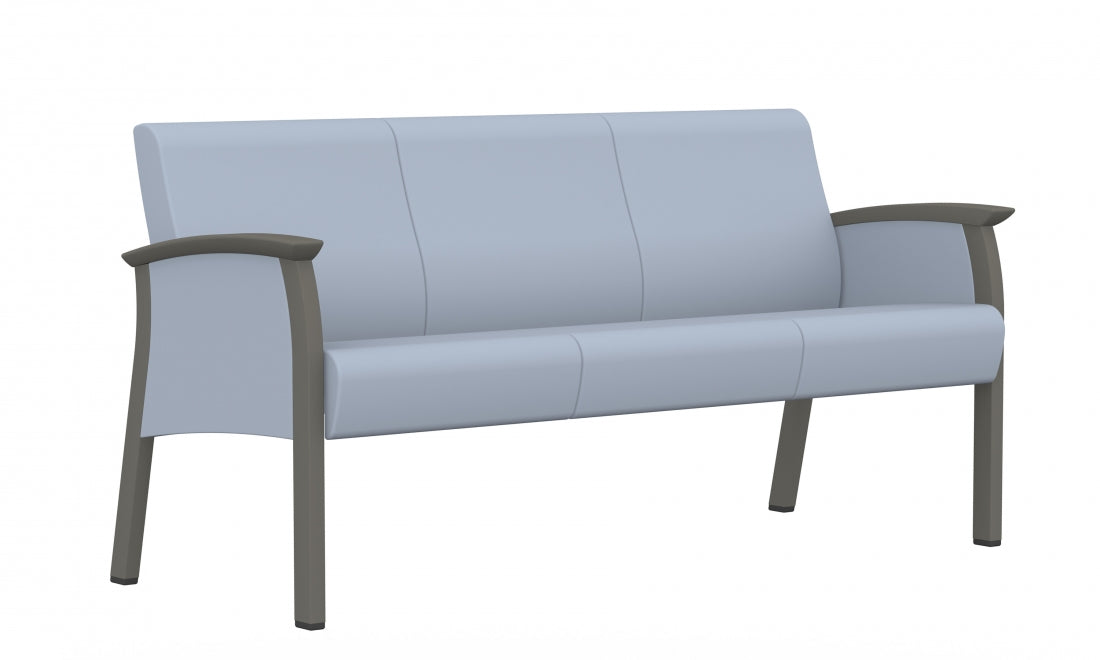

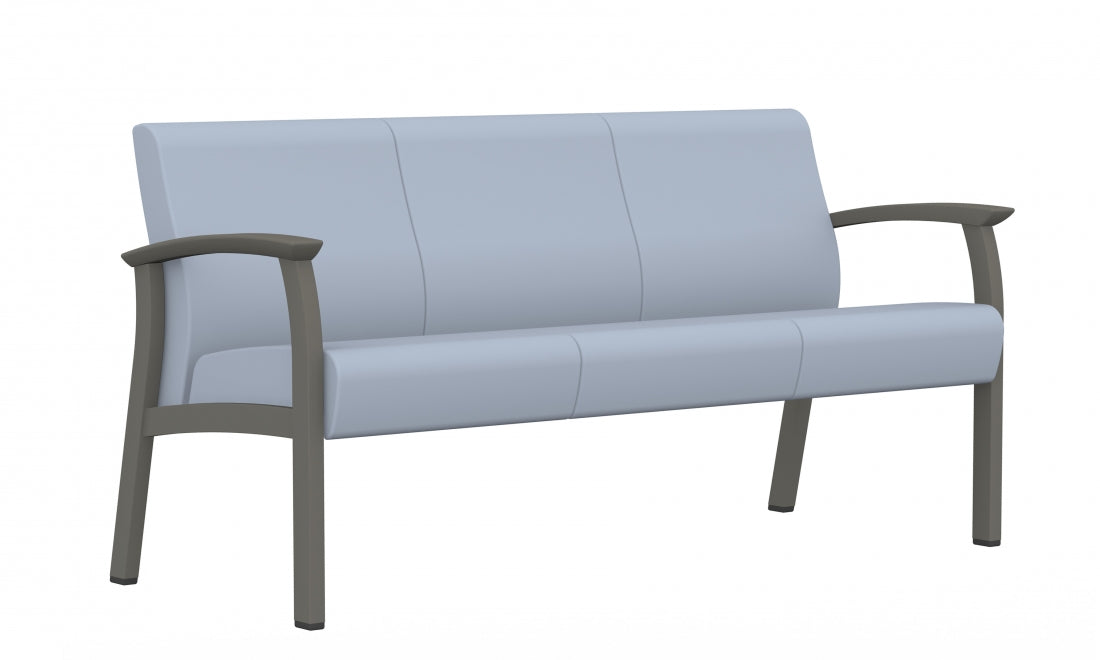

MODELS GC3621 & GC3624

• Connected seats without arms in between

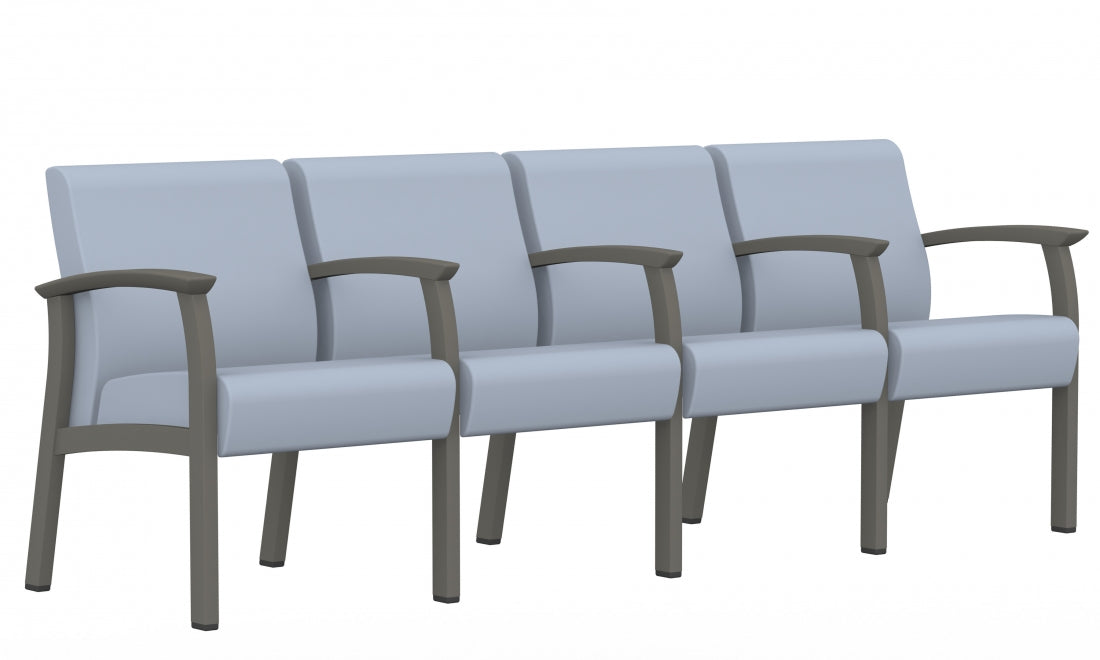

MODELS GC3622, GC3625, GC3628 & GC3630

• Full arms and legs between each seat

• Easy grip forward extending armcaps

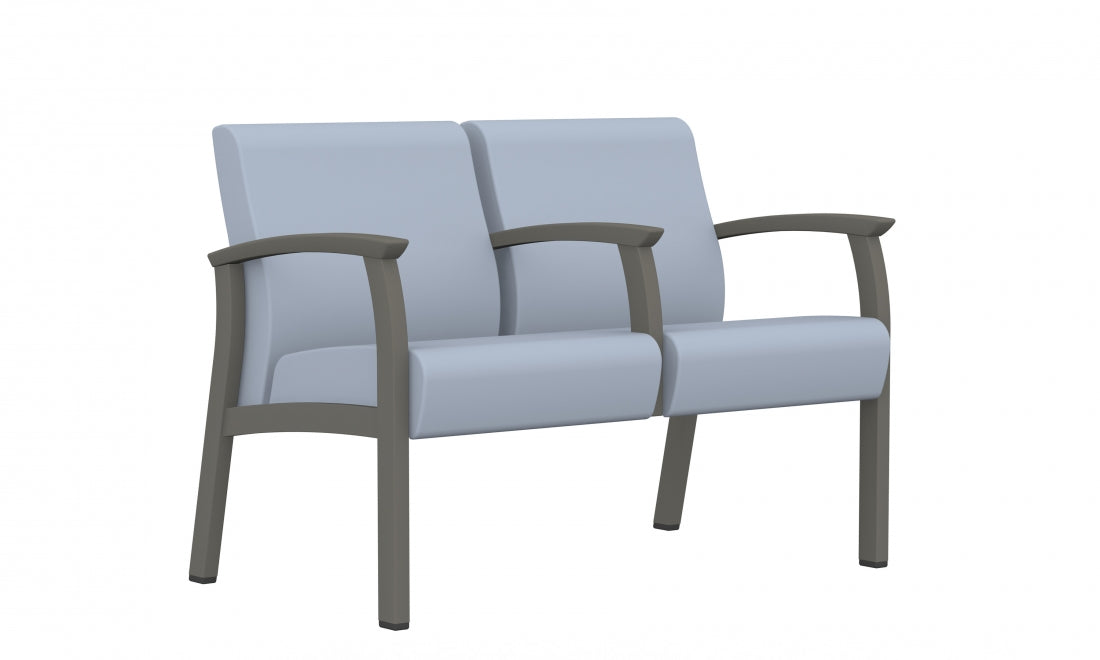

MODELS GC3623 & GC3626

• Armrests only between each seat

• Easy grip forward extending armcaps

Options

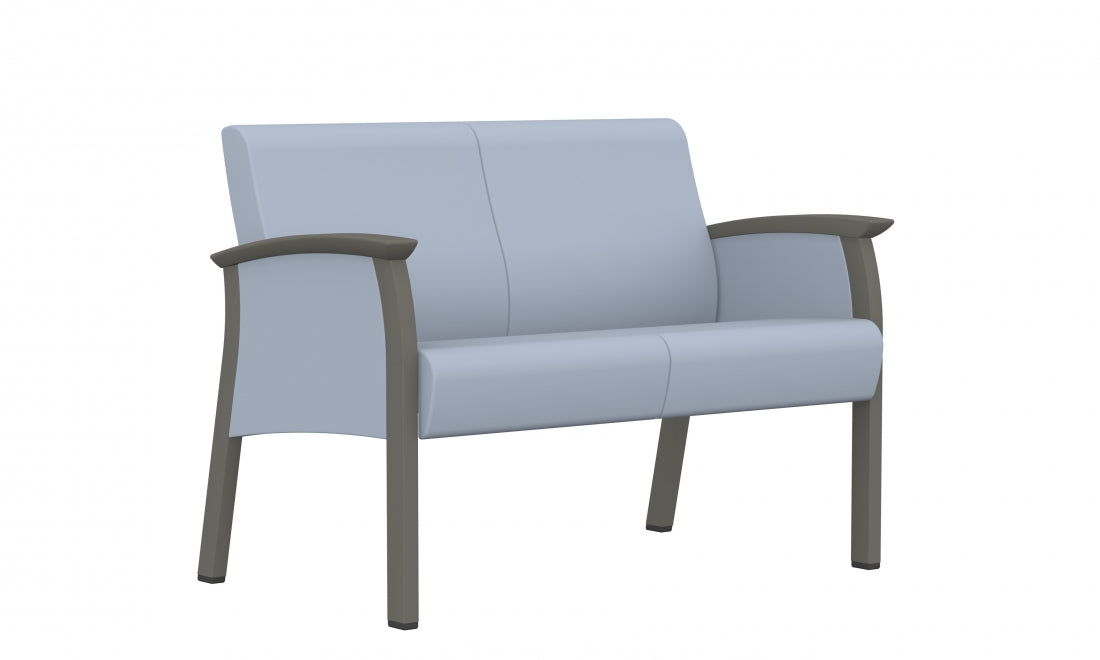

• Under arm space is open, as standard, but closed armsvare available for all models in matching upholstery (CA models)

• Seven frame finishes are available

• SSU armcaps are available in several colours

• Optional wood armcaps are available in any standard Globalcare wood finish

MODELS GC3620 & GC3620CA

• Flex back models are available with a torsion control mechanism allowing the back to rock back 14 degrees

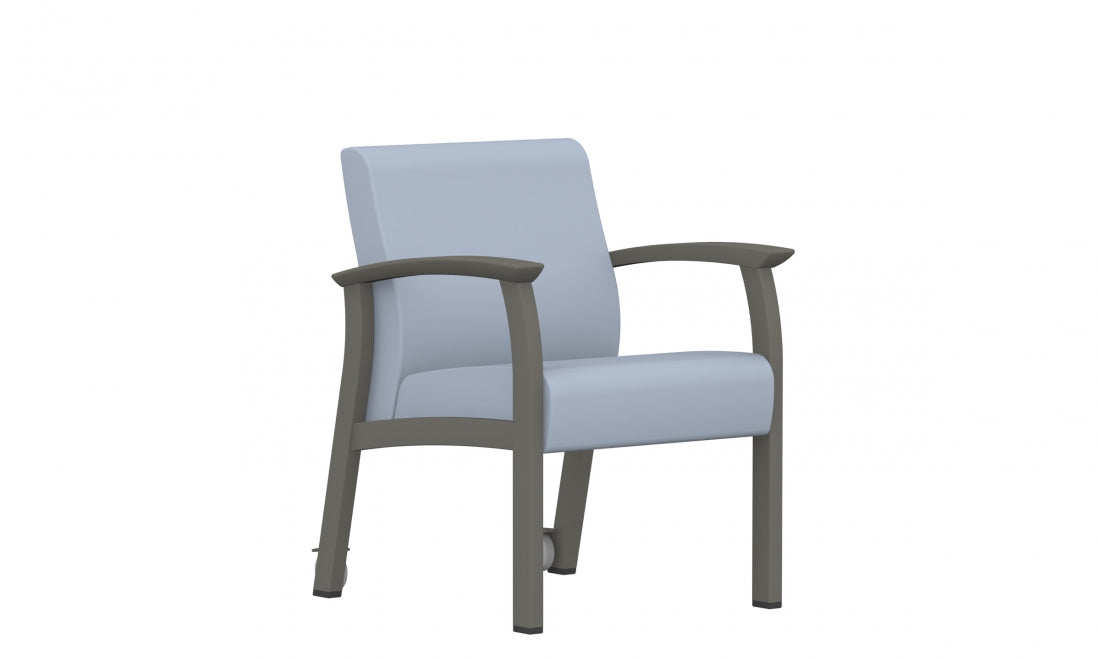

• Wheels can be added to rear wheels for easy rearranging

COM Yardage

Yardage is based on unmatched materials with widths of 54 inches for seating

MODEL GC3620

• Full Unit: 1.75 yards

• Back: 1.00 yards

• Seat: 0.75 yards

MODEL GC3621

• Full Unit: 3.25 yards

• Back: 2.25 yards

• Seat: 1.00 yards

MODELS GC3622 & GC3623

• Full Unit: 3.25 yards

• Back: 2.00 yards

• Seat: 1.25 yards

MODEL GC3624

• Full Unit: 4.25 yards

• Back: 3.50 yards

• Seat: 0.75 yards

MODELS GC3625 & GC3626

• Full Unit: 4.75 yards

• Back: 3.00 yards

• Seat: 1.75 yards

MODEL GC3628

• Full Unit: 6.00 yards

• Back: 3.75 yards

• Seat: 2.25 yards

MODEL GC3630

• Full Unit: 7.50 yards

• Back: 4.75 yards

• Seat: 2.75 yards

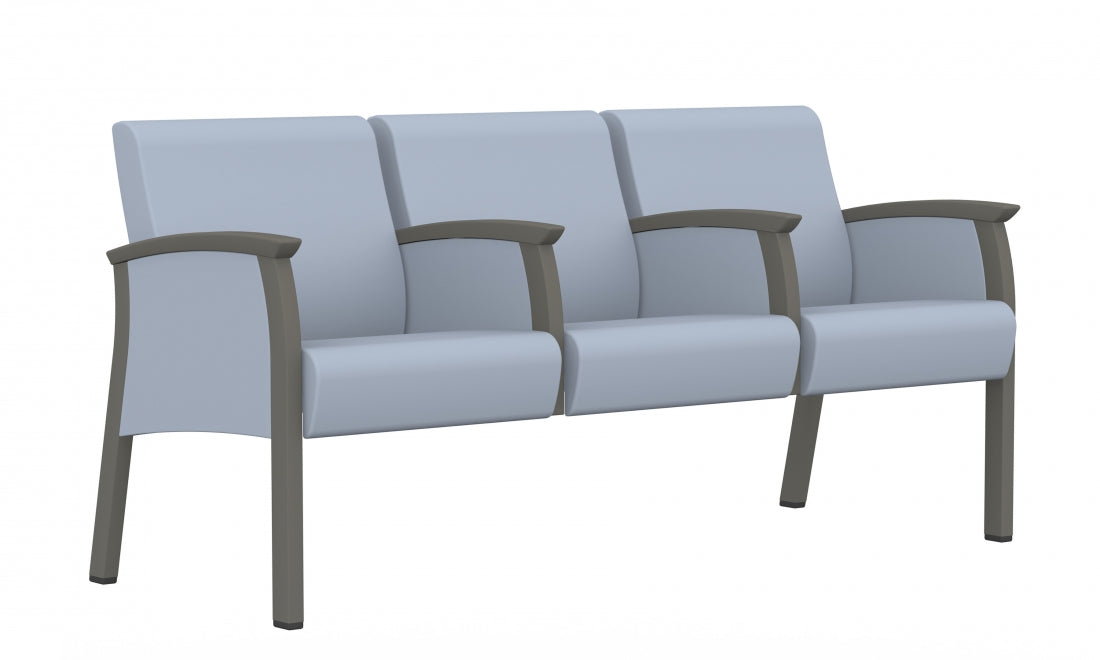

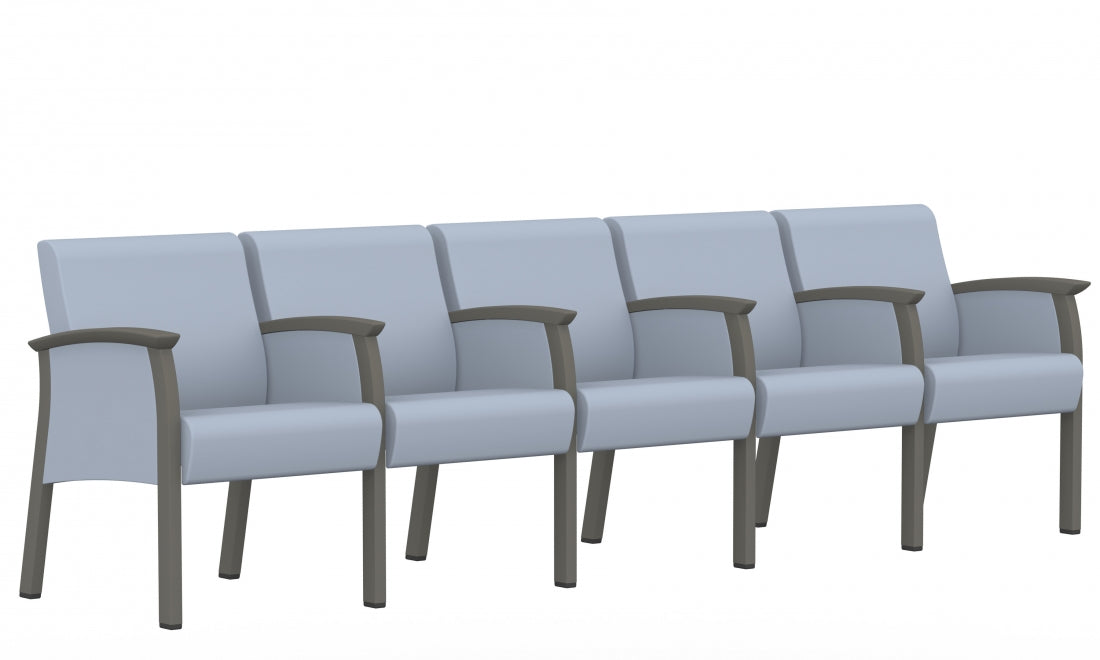

MODELS GC36##CA (closed arms)

• GC3620CA Unit: 2.75 yards

• GC3621CA Unit: 3.75 yards

• GC3622CA Unit: 4.50 yards

• GC3623CA Unit: 4.50 yards

• GC3624CA Unit: 5.25 yards

• GC3625CA Unit: 6.25 yards

• GC3626CA Unit: 6.25 yards

• GC3628CA Unit: 8.00 yards

• GC3630CA Unit: 10.00 yards

Infection Control

• No Velcro on seat

• Seam sealing option

• Zipper sealing option

• Waterfall cleanout between seat and back cushions.

• Metal mesh seat deck. For mental health applications, seat deck can be covered with a solid moisture resistant surface with tamperproof fasteners

• SSU armcaps are cleanable and non-porous

• For proper cleaning and disinfecting practices, the textile selection needs to be identified. It is vital that following any chemical application a clear water wipe down occur to avoid chemical build up that will lead to deterioration of the textile. Contact Global should information on using a specific disinfectant be required

MODELS GC3622, GC3625, GC3628 & GC3630

• Upholstered arm panels are replaceable

On Site Repair and Replacement

• All components are field replaceable including seat, back, armcaps, and arm frames

• Arm frame are interchangeable allowing for on-site conversion from steel to wood, open arm frames to/from closed arm frames, and single seating to/from ganged seating (ganged seating only available for some models)

• Armcaps are interchangeable allowing for on-site conversion from SSU armcaps to wood armcaps

Construction (Overall Frame)

• Metal frame with cast zinc connectors and metal-to-metal fasteners

• Arm frames use 14 gauge rectangular tube construction

Construction (Armcaps)

• SSU armcaps

• Armcaps are molded around a formed steel insert ensuring a metal-to-metal connection

Construction (Seat)

• 14 gauge rectangular tube seat frame

• Welded wire mesh seat deck

Construction (Back)

• 0.75 in (19 mm) thick molded veneer back, mechanically fastened to back uprights using metal-to-metal connections

Construction (Glides)

• Non-marking, black, polypropylene/polyethylene glides

Upholstery

• Zippered seat cushion

• Seat cushion hooks to underside of seat deck and back rail using proprietary C-clip fastener

• Back cushion hooks to underside of back using proprietary C-clip fastener

Foam

• Seat and back cushions have 3.5 in (89 mm) thick molded urethane foam

Weight Capacity

The weight capacity is 350 lbs

Warranty

Lifetime warranty on all components except the following:

• 5 year warranty on foams and textiles

• 12 year warranty on control mechanisms

• Warranty applies only to single shift, standard commercial usage (8 hours/day, 5 days/week)

Fire Rating

All textiles and foam is tested and certified, meeting California Technical Bulletin 117 (CAL 117) standards.

Environmental

View Environmental Data Sheets online.

All foam is produced without using any ozone depleting chloro-flouro chemicals.

Awards/Certifications

• Meets or exceeds all applicable BIFMA standards for safety and durability

• Manufactured in ISO 9001 and 14001 certified facilities
